10 Best SMD To Dip Adapters in 2026

SMD to Dip adapters make surface-mounted components easier to prototype, inspect, and test by converting their compact layouts into a standard 2.54 mm pin format. A useful adapter must match the component package, preserve the correct pin order, provide dependable connections, and fit the intended breadboard or circuit board.

We compared all ten products by examining supported package families, adapter quantities, board construction, pin spacing, stated uses, and compatibility with standard prototyping equipment. The list covers broad multi-package kits, focused SOIC and SOT breakouts, and adapters for small passive components.

Each review explains the package coverage and practical advantages of the adapter, while also noting compatibility details that deserve attention before purchase. Ratings and availability can change over time, so compare the current listing information and confirm the exact component footprint before ordering.

Top 3 Picks for Best SMD to Dip Adapters

Top 10 Best SMD to Dip Adapters in 2026 Compared

The table below highlights each adapter set's package coverage, board quantity, construction, and best-supported use, making it easier to compare broad kits with focused SOIC, SOT, and passive-component solutions.

1. 12 Types SMD to DIP Adapter PCB Proto Board Kit – Best Overall SMD to Dip Adapters

4.8Editor scoreCheck price on Amazon

12 Types SMD to DIP Adapter PCB Proto Board Kit

Twelve supported package types

Fifty-one adapter boards

Forty included pin headers

Double-sided FR4 material

This 51-piece, 12-type SMD to DIP adapter kit has a 4.8 rating and offers one of the broadest package combinations in the list. It covers SOP packages, several SOT formats, 0402, 0603, and 0805 components, TQFP100, and QFN layouts. The inclusion of 40 male 2.54 mm header pins makes it especially convenient for breadboard-based experiments.

Pros

• Broad package-family coverage
• Includes standard male headers
• Suitable for repeated prototyping
• Neat, accessible solder pads
• Useful for debugging and repair

Cons

• Compatibility requires careful checking
• Multiple small boards need organization

We may earn a commission when you buy through this link, at no additional cost to you.

The strongest feature is the mix of component families in a single set. Instead of purchasing several unrelated breakout boards, a maker can select the appropriate footprint for a particular IC, transistor, passive component, or fine-pitch package. Every listed board is double-sided FR4, and the manufacturer states that the edges are neat and easy to solder, supporting both initial assembly and repeated prototyping work.

The main limitation is that the package list is broad but not universal. Buyers must verify the physical dimensions, lead spacing, pin orientation, and pin count of the component they intend to use. A package name can also encompass variations with different body widths or lead pitches, so the listing's warning to check the required size is important. The many-board format may also demand storage and labeling.

This is the strongest general-purpose choice for students, educators, hobbyists, and repair technicians who want a versatile adapter collection. It suits projects involving test equipment, signal transfer, circuit rebuilding, and experimental prototypes. The standard header pins, wide format coverage, and strong customer rating make it an especially sensible starting point for a mixed SMD-to-DIP toolkit.

Broad Package Coverage in One Kit

The stated range spans SOP, SOT, tiny passive packages, TQFP, and QFN devices. That variety lets a prototype move between different component families without requiring a separate adapter for every package encountered.

Convenient Breadboard Integration

The included 2.54 mm male headers provide the common spacing used by standard solderless breadboards. Once a component is soldered to the correct pads, the finished adapter can be inserted for testing and circuit exploration.

Check price on Amazon

We may earn a commission when you buy through this link, at no additional cost to you.

2. 12 Types SMD to DIP Adapter PCB Proto Board Kit – Best Premium SMD to Dip Adapters

4.2Editor scoreCheck price on Amazon

12 Types SMD to DIP Adapter PCB Proto Board Kit

Twelve supported package types

Sixty adapter boards

Double-sided FR4 material

Designed for repeated soldering

This 12-type adapter kit contains 60 boards and carries a 4.2 rating. Its defining feature is quantity: with five more adapter boards than the similarly broad 51-piece set, it offers more boards per package category and may be particularly useful for classrooms, shared workspaces, or anyone who repeatedly changes component packages.

Pros

• Largest stated board quantity
• Twelve package configurations
• Supports repeated soldering
• Useful across many project types

Cons

• Lower rating than other leaders
• Detailed package list is limited

We may earn a commission when you buy through this link, at no additional cost to you.

All boards are described as double-sided FR4, and the manufacturer emphasizes neatly processed construction that is easy to solder. The listing also states that the boards can be soldered repeatedly and that the pin headers offer good conductivity. These characteristics make the kit more than a one-time inspection aid: it can support a workflow in which a prototype is assembled, tested, revised, and reused.

Its most significant drawback is that the provided information gives less detail about the specific package layouts than the first-ranked product does. The title promises 12 types, but the supplied product description does not enumerate each format in full. This makes the package listing less transparent. The 4.2 rating also trails the strongest-rated choices, although it remains positive and should not be treated as a definitive measure of long-term performance.

Buyers who need a high-volume assortment and can confirm the package coverage from the seller should find this kit useful. It is well suited to training benches, educational inventories, and frequent prototyping where having several usable boards for each format is more important than minimizing the assortment. Verify the package diagrams and dimensions before committing to a larger project.

More Boards for Shared Inventories

With 60 boards across 12 types, the set provides an average of five boards per category. That distribution can be valuable for classrooms, repair shops, and makers who want spare boards available for multiple simultaneous experiments.

Built for Repeated Prototyping

The stated ability to be soldered repeatedly is important for development work. A breakout that survives revision cycles can move between temporary testing and final circuit construction more easily than a disposable fixture.

Check price on Amazon

We may earn a commission when you buy through this link, at no additional cost to you.

3. SOIC-8 to DIP-8 Narrow PCB SMD Adapter – Best Focused SMD to Dip Adapter

4.8Editor scoreCheck price on Amazon

SOIC-8 to DIP-8 Narrow PCB SMD Adapter

Narrow SOIC-8 footprint

Ten adapter boards

Standard 2.54 mm spacing

Compact 1 by 0.7 cm

This set of ten narrow SOIC-8 to DIP-8 adapters has a 4.8 rating and offers a straightforward solution for a common surface-mounted package. It is one of the most focused products here, supporting only eight-pin narrow SOIC components rather than attempting to cover many unrelated formats.

Pros

• Focused and easy to understand
• Direct breadboard compatibility
• Compact footprint for tight projects
• Strong 4.8 customer rating

Cons

• Supports only one package style
• Not suitable for wider SOIC devices

We may earn a commission when you buy through this link, at no additional cost to you.

Each board is only 1 by 0.7 cm, allowing it to fit into compact prototype arrangements where a larger breakout would be inconvenient. The board includes a 2.54 mm pitch pin header that can plug directly into a compatible PCB or solderless breadboard. This direct fit simplifies the transition from an SMD IC to a familiar through-hole arrangement.

The obvious constraint is its narrow scope. It will not accept wide SOIC-8 packages, other pin counts, or lead pitches, and users still need to orient the IC correctly. Because the boards are small, dropped components or damaged pads can be frustrating to repair. The listing gives no detailed material description beyond electrical components, so buyers should inspect the product and its actual solder pads before use.

This is a sensible focused purchase for anyone who routinely works with narrow SOIC-8 ICs or needs a simple DIP-8 carrier. The 4.8 rating, compact size, and direct 2.54 mm integration make it convenient for breadboard prototypes, inspections, and component-level tests. It is less suitable as the only adapter in a general electronics workshop.

Compact Adapter for Tight Prototypes

The 1 by 0.7 cm board occupies very little space on a breadboard. This makes the adapter useful when the DIP footprint must sit close to other components or when a prototype has limited free rows.

Clear Package Scope

A dedicated narrow SOIC-8 design removes the guesswork involved in multi-format kits. Users still need to confirm that their IC has the matching narrow body and lead arrangement before soldering.

Check price on Amazon

We may earn a commission when you buy through this link, at no additional cost to you.

4. 80pcs 8 Types PCB Proto Board Kit – Best High-Volume SMD to Dip Adapter

4.8Editor scoreCheck price on Amazon

80pcs 8 Types PCB Proto Board Kit

Eight supported package types

Eighty adapter boards

Ten boards per type

Pre-tinned plated holes

This 80-piece, eight-type PCB adapter kit earns a 4.8 rating and offers the largest stated board count in the comparison. It includes ten boards each for SOP, SSOP, and TSSOP configurations with 8, 10, 14, 16, 20, 24, or 28 pins, plus TQFP layouts with 32, 44, 48, 64, 84, or 100 pins.

Pros

• Largest adapter-board quantity
• Even distribution across formats
• Pre-tinned holes aid soldering
• Extensive TQFP size coverage

Cons

• Does not cover passive packages
• Package list excludes some formats

We may earn a commission when you buy through this link, at no additional cost to you.

A notable construction detail is that the holes are pre-tinned and plated, while the boards are described as thick and double-sided. These features can simplify component placement and soldering compared with bare or untreated prototyping material. The manufacturer identifies the board material as FR-4 class with green oil and tin spraying, and describes the finished solder joints as firm.

The package selection is excellent for common ICs but does not cover every small SMD category. There are no listed adapters for 0402, 0603, 0805 passives, SOT devices, or QFN packages, so another product may be required for a mixed workflow. Buyers should also check the exact body width and lead pitch within each named family, because a matching pin count alone does not guarantee a footprint match.

This kit is particularly well suited to students, educators, and technicians who handle many integrated circuits and want ready stock in several common formats. The even allocation of ten boards per type supports repeat use and replacement. It is a strong choice for work centered on SOP, SSOP, TSSOP, MSOP-style applications, and TQFP devices.

Pre-Tinned Holes Simplify Assembly

Pre-tinned plated holes give solder a prepared surface to bond to during component placement. This can make repeated prototyping more consistent and reduce the setup required before attaching an SMD component.

Exceptional Board Quantity

Ten adapters for each of eight types reduce the chance of exhausting stock during a busy workshop or class. The quantity is especially helpful where boards may be assembled, tested, reused, or replaced repeatedly.

Check price on Amazon

We may earn a commission when you buy through this link, at no additional cost to you.

5. 0402 0603 0805 SMD Adapter Board – Best for Passive Components

4.8Editor scoreCheck price on Amazon

0402 0603 0805 SMD Adapter Board

Supports three passive packages

Fifty adapter boards

Standard 2.54 mm pitch

20.32 by 10.16 mm

This 50-piece SMD to DIP breakout set has a 4.8 rating and focuses on the tiny 0402, 0603, and 0805 passive-component packages. These surface-mount resistors and capacitors are difficult to handle directly on a breadboard, so converting them to a standard pitch is a practical way to simplify temporary testing.

Pros

• Covers three tiny passive packages
• Direct breadboard compatibility
• Large quantity for the format
• Consistent board dimensions

Cons

• Limited to passive components
• Not intended for IC packages

We may earn a commission when you buy through this link, at no additional cost to you.

The boards measure 20.32 by 10.16 mm and are compatible with standard 2.54 mm breadboards. That dimensional consistency suggests a familiar layout for anyone accustomed to building with conventional DIP parts. The included quantity also provides enough boards for multiple circuits or repeated testing of the same small component values.

This is not an IC carrier, and it does not cover SOP, TSSOP, TQFP, QFN, or SOT packages. The correct termination and orientation also depend on the individual component being installed, so the adapter should not be treated as a universal fixture. Its larger footprint may also be less convenient in extremely compact experimental layouts than the dedicated narrow SOIC-8 design.

This is a focused and useful companion for anyone prototyping with miniature resistors or capacitors, particularly when a 0603 or 0805 part must be tested alongside ordinary through-hole components. The high rating, 50-board quantity, and standard spacing make it a practical addition to a workbench. Buyers working primarily with ICs should choose one of the broader kits instead.

Makes Tiny Passives Easier to Test

A 0402, 0603, or 0805 component is difficult to place reliably between standard breadboard holes. The adapter provides a larger, more accessible termination for measuring and circuit experiments.

Standard Dimensions and Spacing

The stated 20.32 by 10.16 mm size and 2.54 mm compatibility make the board easy to incorporate into conventional breadboard layouts. Its scale also provides enough room for compact passive components and their solder joints.

Check price on Amazon

We may earn a commission when you buy through this link, at no additional cost to you.

6. SOT23-3 SOT-323 to DIP Adapter – Best for Flexible SOT Layouts

5.0Editor scoreCheck price on Amazon

SOT23-3 SOT-323 to DIP Adapter

Dual-sided package support

Twenty adapter boards

Handles two lead footprints

Converts devices to SIP3

This 20-piece SOT23-3 and SOT-323 adapter set has the highest stated rating in the list at 5.0. Each double-sided board provides two possible SMD landing areas, allowing the same carrier to accommodate small three-lead components in more than one footprint.

Pros

• Highest stated product rating
• Two footprint layouts per board
• Useful for small transistors
• Good quantity for prototyping

Cons

• Restricted to three-pin devices
• Soldering demands careful alignment

We may earn a commission when you buy through this link, at no additional cost to you.

The front side has a 1.9 mm foot distance intended for SOT-23-3 and TO-236AB devices. The back side has a 1.2 mm foot distance for SOT-323, SC-70, SC70-3, and SOT-323T layouts. Converting these parts to a SIP3-style arrangement makes them much easier to place in a breadboard or temporary test setup.

The small package is naturally suited to transistors, regulators, and other three-terminal components, but it cannot accommodate larger ICs. Alignment is important: the user must place the component on the correct side and observe its pin-one direction. Because these packages are compact, excess solder can also create bridges between the closely spaced pads, so a controlled soldering technique is advisable.

This adapter is an excellent match for users who alternate between SOT-23 and SC-70 or SOT-323 devices and want one board format to cover both. Its 5.0 rating, dual-sided design, and three-pin conversion make it a focused, versatile tool for transistor-level prototyping. It should be chosen alongside broader adapters when an entire project includes multiple package families.

Two Layouts on Every Board

The front and reverse sides support different lead spacings, so one board can serve several closely related SOT packages. This flexibility reduces unnecessary board consumption when a prototype changes component format.

Three-Pin Components Become Easier to Reach

Converting a compact three-lead device to SIP3 form makes it easier to insert into a breadboard and connect to meters or other test equipment. The larger interface reduces the precision required during temporary wiring.

Check price on Amazon

We may earn a commission when you buy through this link, at no additional cost to you.

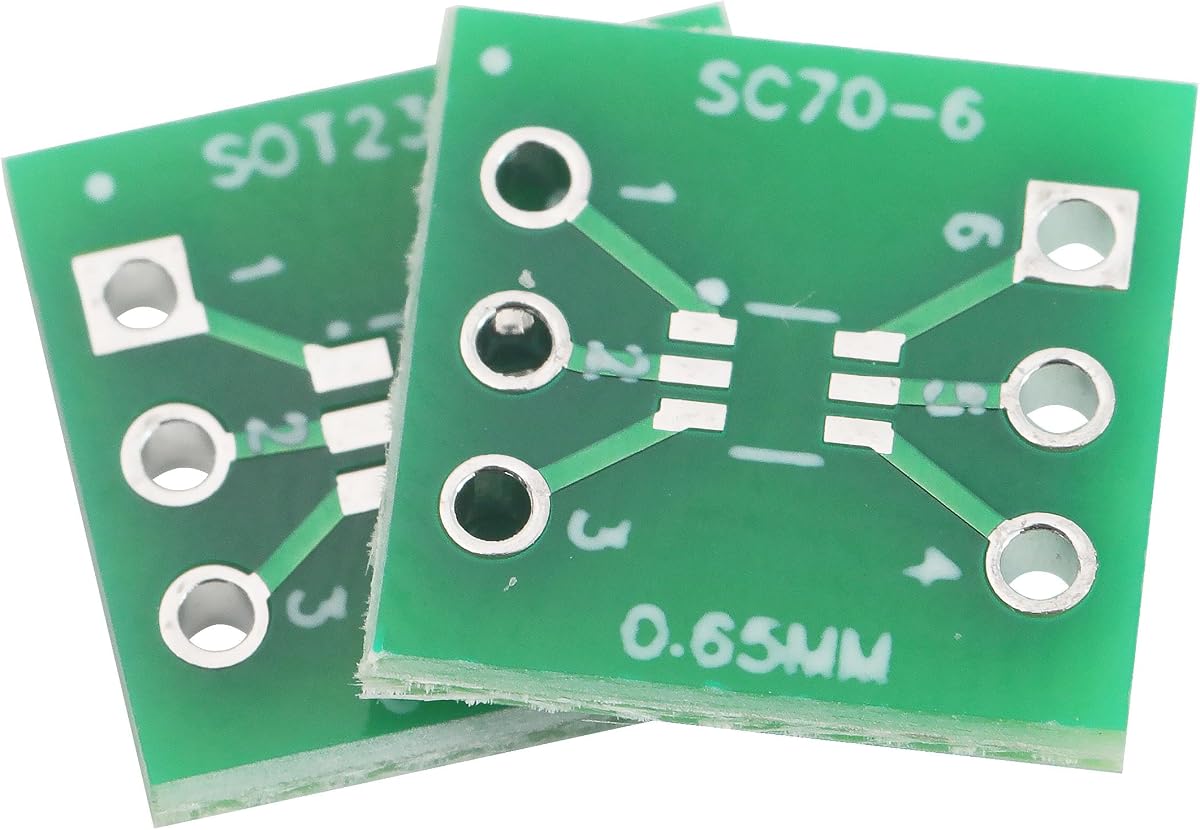

7. SOT23-6 SC70-6 to DIP Adapter – Best for Six-Pin SOT Components

4.7Editor scoreCheck price on Amazon

SOT23-6 SC70-6 to DIP Adapter

Supports two six-pin packages

Twenty adapter boards

2.54 mm breadboard spacing

10.3 by 10.7 mm

This dedicated SOT23-6 and SC70-6 breakout has a 4.7 rating and converts both package families into a DIP-style arrangement. With 20 boards included, it offers enough inventory for several small circuits while remaining focused enough for users who know they need six-lead SOT devices.

Pros

• Covers SOT23-6 and SC70-6
• Direct standard breadboard use
• Compact 10.3 by 10.7 mm size
• Twenty boards included

Cons

• Only handles six-pin devices
• Pin orientation needs verification

We may earn a commission when you buy through this link, at no additional cost to you.

Its 2.54 mm compatibility makes the finished adapter suitable for standard solderless breadboards. The 10.3 by 10.7 mm board is notably compact, which helps when the component must be positioned in a constrained prototype. The manufacturer identifies the intended applications as debugging, maintenance, signal import or export, and connection to test equipment.

Six-pin SOT packages have closely spaced leads, so accurate component placement and careful soldering are essential. A solder bridge on such a small adapter can change circuit behavior or damage the component. The product information does not provide a detailed material or board-thickness specification, so buyers should assess pad quality and finish visually when the package arrives.

This is a good dedicated choice for prototyping small six-pin ICs in SOT23-6 or SC70-6 form. Its 4.7 rating, standard spacing, and compact dimensions make it particularly useful for debugging where easy breadboard access matters. It is best used alongside a broader kit when a project also includes larger packages.

Compact Size Preserves Breadboard Space

At 10.3 by 10.7 mm, the adapter takes up relatively little breadboard area. That is valuable in dense prototypes where the SMD device must remain close to the rest of the circuit.

Purpose-Built Six-Pin Support

A dedicated design avoids the size and pin-count compromises of using a universal carrier. The result is a direct conversion intended for SOT23-6 and SC70-6 components.

Check price on Amazon

We may earn a commission when you buy through this link, at no additional cost to you.

8. 12 Types SMD to DIP Adapter PCB Kit – Best Versatile Prototype Set

4.6Editor scoreCheck price on Amazon

12 Types SMD to DIP Adapter PCB Kit

Twelve supported package types

Fifty-one adapter boards

Forty included pin headers

Double-sided FR4 material

This 51-piece, 12-type SMD to DIP kit has a 4.6 rating and closely resembles the first-ranked product in construction and included accessories. It covers SOP8 through SOP28, tiny passive packages, SOT89 and SOT223, TQFP100, and QFN32 through QFN48 formats.

Pros

• Wide package-family selection
• Includes standard male headers
• Double-sided FR4 boards
• Supports repeated soldering

Cons

• Rating trails category leaders
• Must verify dimensions and pitch

We may earn a commission when you buy through this link, at no additional cost to you.

The set includes 40 2.54 mm pin headers, allowing users to install standard male connectors on the boards they need. Its double-sided FR4 construction and neatly processed edges are designed to simplify soldering. The manufacturer also states that the boards can be soldered repeatedly and the headers have good conductivity, supporting iterative development rather than single-use inspection.

Like other broad kits, its usefulness depends on accurate package selection. The listed SOT89 and SOT223 support, for example, should be matched to the exact component dimensions and lead spacing. QFN devices can also be challenging to solder because their contacts are underneath the package, and the presence of an adapter does not eliminate that assembly challenge. The 4.6 rating is solid but slightly below the strongest options.

This is a good general-purpose kit for a bench that handles SOP, SOT, QFN, TQFP, and passive parts. It is especially attractive to users who want male headers included rather than sourcing connectors separately. For repetitive classroom or workshop work, however, the 80-board set may offer better inventory depth.

Included Headers Reduce Extra Setup

Forty male headers make it possible to prepare many boards for breadboard use without purchasing connector strips separately. Users can also choose how many adapters to fit according to their immediate project needs.

One Set Across Major Families

SOP, SOT, QFN, TQFP, and passive-package support gives the kit broad relevance. It is particularly convenient for projects that move from one component family to another during development.

Check price on Amazon

We may earn a commission when you buy through this link, at no additional cost to you.

9. 7-Type SMD to DIP Breakout Board – Best for Common IC Package Families

3.8Editor scoreCheck price on Amazon

7-Type SMD to DIP Breakout Board

Seven supported package types

Thirty-five adapter boards

Includes MSOP-10 layout

Double-sided construction

This 35-piece, seven-type adapter set has a 3.8 rating and covers SOP8, MSOP10, SOP14, SOP16, SOP20, SOP24, and SOP28 formats. It concentrates on small and medium IC packages commonly encountered in electronics prototypes and service work.

Pros

• Covers several common IC families
• Includes five boards per type
• Double-sided adapter construction
• Useful for debugging and repair

Cons

• Lowest stated product rating
• Smaller assortment than leading kits

We may earn a commission when you buy through this link, at no additional cost to you.

Each of the seven types appears to be represented by five boards, creating a balanced set for repeated use. The boards are double-sided, and the manufacturer identifies debugging, maintenance, signal transfer, and test-equipment connection as intended applications. These characteristics give the set a clear role as a practical collection of small IC carriers rather than a passive-component or fine-pitch specialty kit.

The 3.8 rating is the lowest among the listed products, so buyers should pay particular attention to the delivered quality and exact package compatibility. The set does not mention QFN, TQFP, SOT, or tiny passive packages, and an MSOP10 entry does not imply that every MSOP body size is accepted. Users must compare the footprint drawings and lead dimensions before soldering.

This kit is worth considering for a lab that mainly handles SOP and MSOP devices and wants a moderate inventory rather than a large assortment. Its focused format range and five-per-type quantity are practical, but the lower rating and narrower coverage make it a secondary choice compared with the higher-rated multi-family kits.

Focused on Common IC Formats

The seven listed layouts concentrate on SOP and MSOP devices. This makes the set easier to understand and organize than a mixed kit when those packages dominate a project.

Balanced Five-Board Distribution

Thirty-five boards provide useful replacement stock without the handling demands of a much larger assortment. That balance suits repeat testing, teaching, and maintenance work.

Check price on Amazon

We may earn a commission when you buy through this link, at no additional cost to you.

10. SOT23 to DIP SIP3 Adapter Board – Best High-Volume SOT23 Adapter

4.9Editor scoreCheck price on Amazon

SOT23 to DIP SIP3 Adapter Board

Fifty adapter boards

Supports SOT23 packages

Converts 0.95 mm to 2.54 mm

Double-sided PCB layout

This 50-piece SOT23 to SIP3 adapter has a 4.9 rating and is among the strongest-rated options. It focuses on one particularly common task: mounting a compact SOT23 or SOT23-3 device so it can be used with a conventional 2.54 mm grid.

Pros

• Large quantity of focused boards
• Strong 4.9 customer rating
• Converts compact pitch effectively
• Direct PCB and breadboard use

Cons

• Only supports small SOT23 devices
• No explicit body-width guidance

We may earn a commission when you buy through this link, at no additional cost to you.

The double-sided design gives each board an A side and a B side. The stated function is to convert SOT23 devices with 0.95 mm pin pitch into a SIP3 layout with 2.54 mm pitch. Its mounted header can plug directly into a compatible PCB or breadboard, eliminating the need to improvise fine-pitch connections during testing.

The package limitation is substantial because the board is intended only for small SOT23-style devices. It cannot accept larger SOT packages, ICs with different pin counts, or QFN and TQFP components. The product information also does not explicitly state the body dimensions accepted on each side, so the footprint should be checked against the actual component before assembly. Fine-pitch soldering still requires care.

This is a strong option for technicians and hobbyists who repeatedly handle SOT23 transistors, regulators, and similar three-lead devices. Fifty boards provide substantial stock, while the 4.9 rating indicates strong customer reception. It is most useful as a focused complement to a broader adapter collection rather than a universal solution.

Useful Pitch Conversion

Converting a 0.95 mm SOT23 footprint to 2.54 mm spacing makes temporary connections much easier. The wider interface is more forgiving for breadboard wiring and standard test clips.

Fifty Boards for Repetitive Work

The high quantity is useful for component inspection, repeated prototypes, or multiple parallel test positions. It also provides spare boards when a small assembly is damaged during soldering.

Check price on Amazon

We may earn a commission when you buy through this link, at no additional cost to you.

Buying Guide – How to Choose the Best SMD to Dip Adapters

The right adapter depends less on the number of boards in a package than on exact footprint compatibility, electrical layout, and the prototyping method you intend to use. Review these factors before choosing a set.

Match the Exact Component Package

Start with the component's full package designation rather than a broad family name. Pin count alone is insufficient because devices with the same number of leads can have different body widths, lead pitches, exposed pads, and pin-one positions. Compare the adapter's landing area with the manufacturer's component drawing, paying attention to dimensions, orientation marks, and whether the package has an exposed center pad. A mismatch may prevent assembly or cause an incorrect circuit connection even if the component appears to fit.

Choose an adapter whose listed format and dimensions correspond exactly to the parts you already use or expect to use.

Confirm Pin Order and Orientation

A useful SMD to DIP adapter preserves the electrical order of the SMD component when mapped to the larger pin grid. Verify whether the adapter mirrors the package, how pin one is marked, and whether any ground or supply pins are rearranged. Incorrect orientation can create misleading test results, and a reversed data or enable signal can damage a circuit. Use the board's silkscreen and the component datasheet together before applying power.

Confirm that the listed pin mapping is documented and matches your intended circuit.

Choose the Right Breadboard Pitch

Standard solderless breadboards use a 2.54 mm pitch, so an adapter intended for that environment should terminate at that spacing. Some adapter boards are only partially populated with headers, while others include separate male strips that the user must attach. Check the package contents before ordering, especially when a set advertises 40-pin headers that may need to be broken apart and inserted. A correct footprint without usable headers may require an additional trip to a component supplier.

Verify whether the included headers are sufficient for the number and style of boards you plan to assemble.

Consider Package Quantity and Board Variety

Broad kits are attractive for general labs because they cover several package families and often provide spare boards in every category. Focused sets can be more appropriate when a single package dominates your work, offering less clutter and simpler footprint verification. Consider both the stated number of boards and the distribution per type. A large total quantity does not guarantee useful coverage if the formats you need are absent.

Prioritize the package types you use regularly, then choose quantity according to how often you expect to assemble and replace boards.

Inspect Board and Pad Quality

The listed materials indicate that most boards use double-sided FR4, but construction details vary. Pre-tinned plated holes can make soldering easier and more consistent, while neat edges support cleaner handling. Look for well-defined pads, adequate spacing between close contacts, and a surface that is not excessively contaminated. Fine-pitch and exposed-pad packages demand particular care because solder can bridge between contacts or accumulate beneath the component.

Favor double-sided, neatly processed boards with clear pads and pre-tinned holes when your assembly method benefits from added preparation.

Assess Soldering Difficulty

SOP and SOT packages with visible leads are usually approachable for experienced hobbyists, while QFN components require more careful work because their terminals are hidden underneath the body. An adapter can improve handling after assembly, but it cannot remove the original soldering challenge. Consider whether the kit includes enough large pads and open space to support an iron, tweezers, flux, and appropriate inspection. A board that is too small for comfortable access may be frustrating even if it is technically compatible.

Match board density and terminal pitch to your soldering skill and tools before buying.

Plan for Reuse and Debugging

Many SMD to DIP adapters are described as suitable for debugging, maintenance, signal import and export, or providing a signal source to test equipment. Reusability depends on clean soldering, sound headers, and a stable pin mapping. If a board will move repeatedly between a breadboard, meter, and custom circuit, choose one with sturdy 2.54 mm connections and ample solder-joint clearance. Keep replacement boards in stock if the project will evolve.

Select a durable, reusable layout when the adapter is expected to move among instruments and temporary circuits.

Check Breadboard Space and Layout

Adapters differ substantially in size. Passive-component boards around 20.32 by 10.16 mm are easy to handle, while compact SOIC and SOT carriers use less breadboard space. Count the rows occupied by the header and nearby components, and consider whether test clips or probes will need access. The logical pin arrangement and physical orientation should both work within the intended circuit rather than merely fitting the package.

Choose a size that leaves enough room for neighboring parts, wiring, and test leads while satisfying your circuit layout.

How to Use and Care for Your SMD to Dip Adapters

Begin by identifying the exact component package and comparing its datasheet dimensions with the adapter layout. Clean the relevant pads, apply a small amount of suitable solder flux, and position the component so pin one aligns with the adapter's marked orientation. Work in small stages, soldering one or two leads first before securing the remaining connections. Inspect the joints under magnification and test for continuity or shorts before installing any headers.

Break included male header strips into the required lengths only if the boards do not already have suitable headers, and insert each pin squarely through the correct adapter holes. Solder the header on the side opposite the component when space permits. Keep the soldering iron away from plastic or other heat-sensitive parts, and avoid applying excessive heat to small FR4 pads that may lift or discolor. After cooling, test every relevant connection with a continuity check.

For breadboard use, power down the circuit before inserting or removing the adapter. Keep the board supported so its leads are not bent, and do not force a mismatched component into the pads. Store unused boards in labeled compartments, ideally with the component side facing upward to protect exposed contacts. Clean used boards with an appropriate electronics cleaner, allow them to dry fully, and inspect for loose pins, cracked joints, or corrosion before the next test.

Frequently Asked Questions

Final Thoughts on Choosing the Best SMD to Dip Adapters

Related guides

• 10 Best Mouse Grip Adapter for Switch 2 (October 2026) Expert Guide
• 10 Best Gimbal for Pixel 10a (October 2026) Expert Guide
• 10 Best Solder Seal Wire Connectors Kit (October 2026) Expert Guide
• 10 Best Easy to Use Compact Digital Camera (October 2026) Expert Guide
